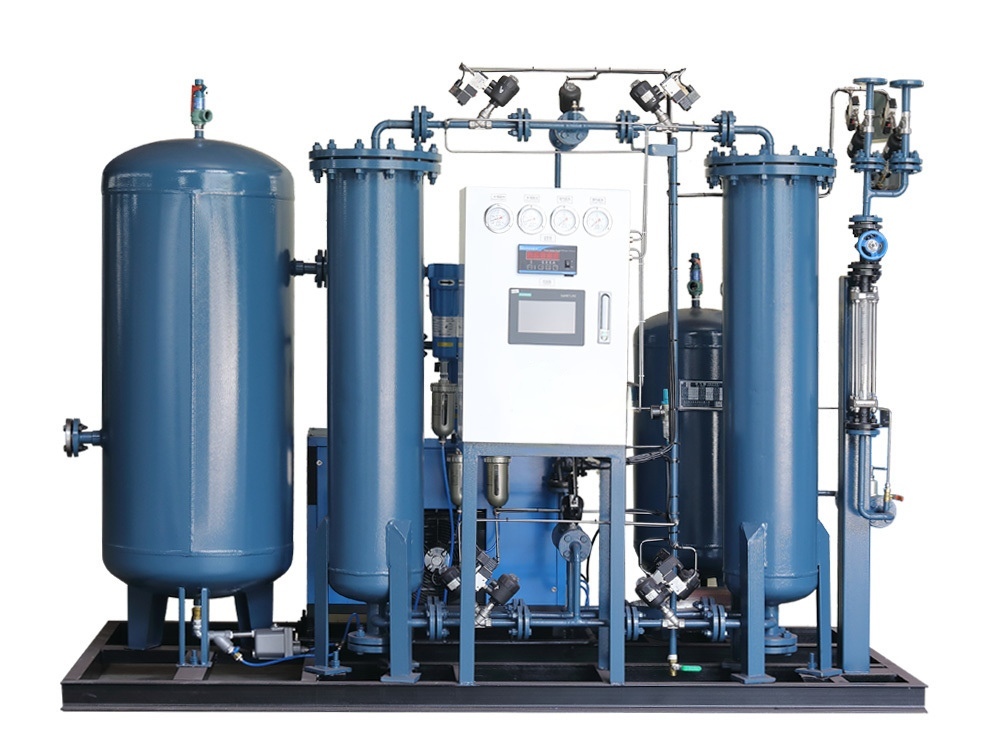

Twin Tower PSA Nitrogen Generator

How PSA Nitrogen Generation Works PSA nitrogen generation is a technology to separate nitrogen from air by the adsorption ability of carbon molecular sieve under pressure by air compressor. After the air is compressed and purified (removing the oil, water and dust, etc.) before transferring into the absorption tower filled with carbon molecular sieves (CMS), the oxygen molecule will be adsorbed by carbon molecular sieve, while nitrogen molecules are too large so that they will be remained in the air. Those nitrogen molecules will pass through the tower into the nitrogen buffer tank, while oxygen molecules remain in the CMS. The adsorption process is performed at certain pressure, after that the atmospheric pressure will be resumed, and the adsorbed oxygen molecules will be escaped from CMS, pass the bottom of the tower through the exhaust silencing muffler into the air, and the CMS is available to be reused. Usually PSA nitrogen generator adopts double adsorption towers in parallel, they will be used alternatively for the adsorption and collection of the nitrogen under different pressure, continuously supporting the separation of oxygen and nitrogen. The above process will be automatically controlled by PLC system.

Features Adopting world-leading molecular sieve filling technology - snow storm filling to improve the filling density to make sure the molecular sieve is well-compressed, effectively prevent the molecular sieve from losing efficacy, in order to prolong the service life; Adopting German Bauder valves, which can operate 3 million times without defections; Adopting German Siemens PLC control system; More stable performance with an average of 10,000 hours of errorless operation. Applications Metallurgical heat treatment industry: can be used in the process of steelmaking converter sealing, blast furnace roof sealing, blast furnace ironmaking pulverized coal injection, continuous casting and rolling, steel annealing, stress relieving, aging, quenching, carburizing, nitrogen-carbon co-infiltration, nitriding, vacuum quenching and other nitrogen-based atmosphere heat treatment, metal welding and powder metallurgy sintering, as well as cleaning, dilution of gas. Oil and gas industry: can be used in the transportation, storage and extraction of oil and gas, protection during transportation of gas drive devices and instrumentation, maintaining the pressure of oil and gas wells, maintaining and improving the process of oil and gas production, completion and maintenance of oil and gas wells, etc. Chemical and pharmaceutical industries: can be used in nitrogen sealing during production, nitrogen protection, pipeline purging, material transportation and distribution, preventing oxygen contamination of raw materials and in production processes. Grain, oil, and foodstuffs: can be used in grain storage to prevent spontaneous combustion and insect infestation, and used in oil storage and filling nitrogen sealing for bacterial inhibition, shelf life extension, fermentation control, and odor inhibition. Nitrogen protection in the whole process of food and beverage production and packaging can effectively prevent food from deteriorating, keep freshness and maintain good taste, as well as extend the shelf life. Electronics industry: can be used for lead-free reflow soldering, wave soldering, selective soldering, blowing and encapsulation, high-precision chip sealing, PCB baking, etc.

Functional Integration for Industrial Gas Supply

The tower type PSA nitrogen generator is engineered to provide reliable on-site nitrogen generation tailored for industrial users, including chemical plants, electronics manufacturers, and packaging facilities. As a proven solution from established psa nitrogen generator manufacturers, it suits enterprises seeking consistent nitrogen purity and pressure, eliminating dependence on cylinder or bulk supply. This system serves target users requiring seamless nitrogen integration within their production or processing environments, delivering nitrogen with purities customizable between 97% and 99.999%. The flexibility and modular design support diverse operational scales, meeting varying nitrogen demand with operational efficiency and minimized downtime.

Advanced Technical Design with Automated Controls

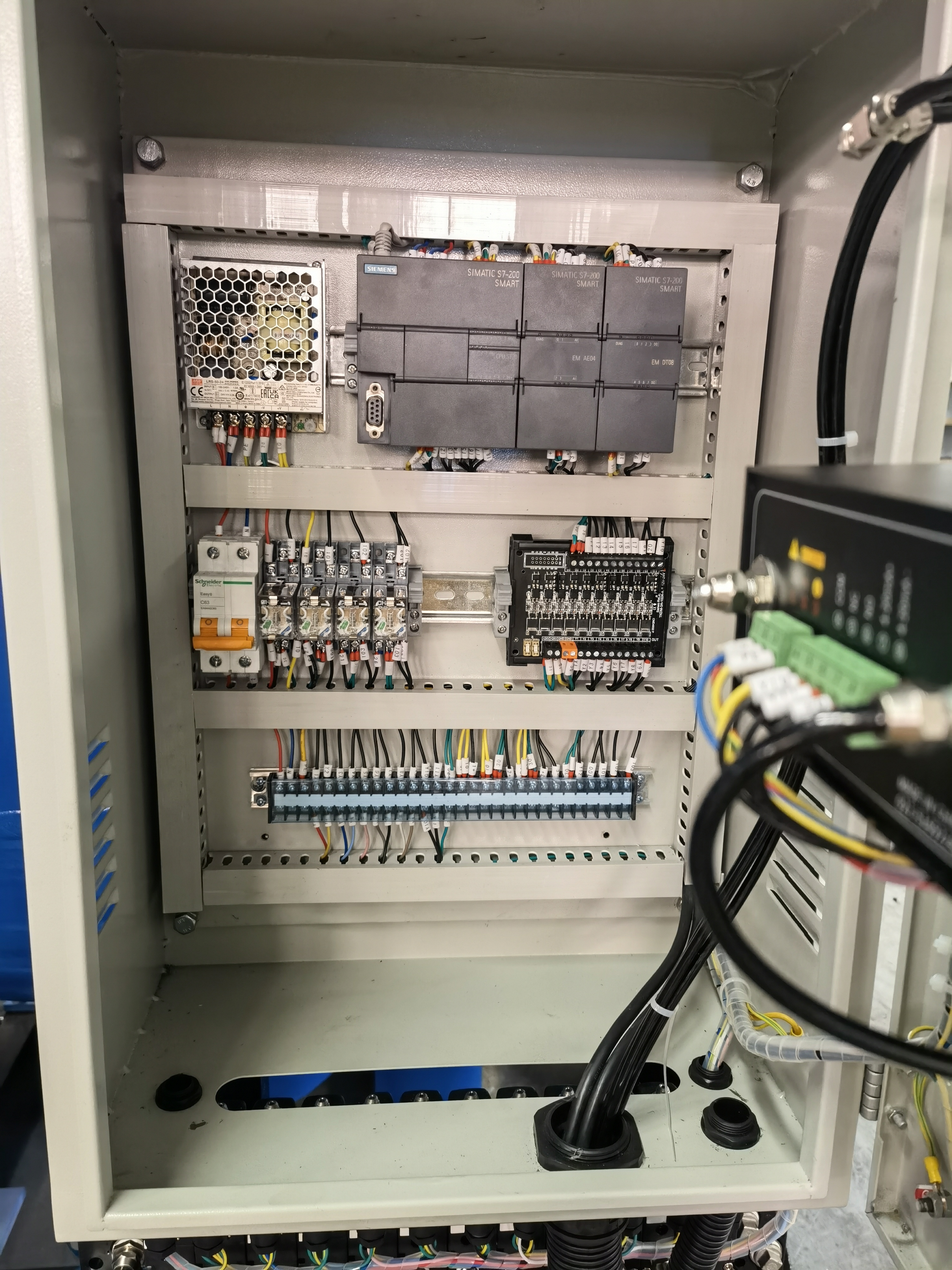

This psa nitrogen generator employs twin adsorption towers filled with carbon molecular sieves to enable continuous nitrogen production via pressure swing adsorption technology. It offers real-time monitoring of nitrogen purity, flow, and pressure through an integrated human-machine interface and PLC control system. Optional industrial communication protocols such as RS485 Modbus and Ethernet enable integration into existing plant control networks. Measurable specifications include nitrogen output capacity ranging from 20 to 5000 Nm3/h with purity options up to 99.999%, and nitrogen pressure adjustable between 0.1 to 0.8 MPa. Automated valve switching and molecular sieve compaction optimize operational reliability and extend component lifespan.

Application Across Diverse Industrial Processes

Industries ranging from food packaging, pharmaceuticals, and metallurgy to electronics and chemical processing leverage the tower type PSA nitrogen generator to supply stable inert atmospheres critical for product protection and process safety. The system’s ability to maintain consistent nitrogen purity supports critical operations such as blanketing, purging, and inerting. Its compact footprint and configurable modules enable retrofit into existing production lines or new construction with minimal disruption. Compliance with industry standards and integration flexibility make this nitrogen generator ideal for sectors demanding quality assurance, process dependability, and automated gas management.

Design and System Integration Excellence

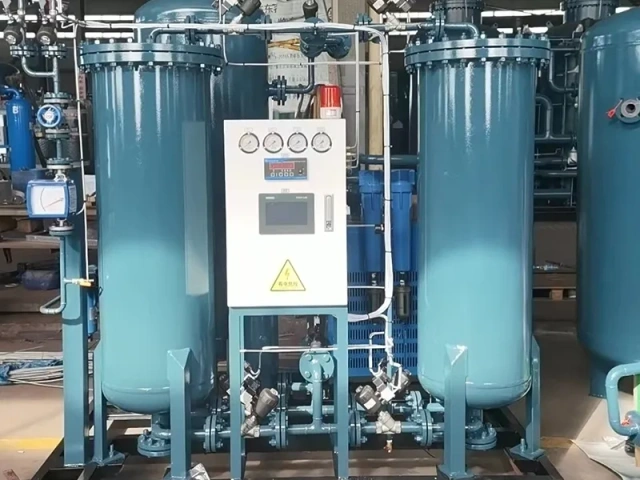

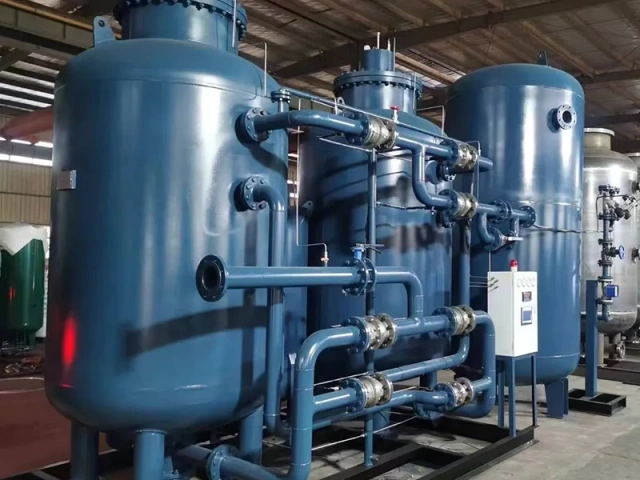

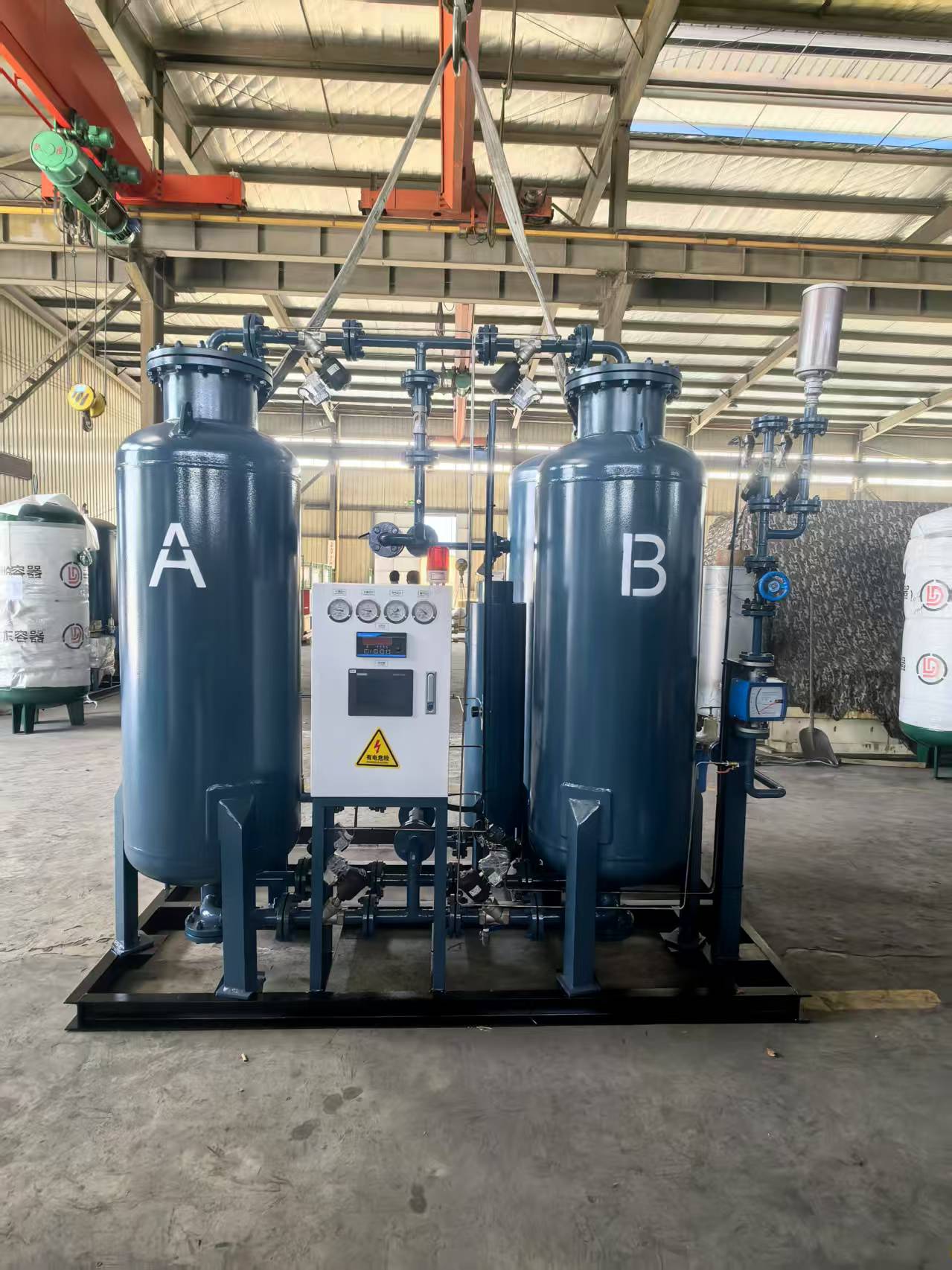

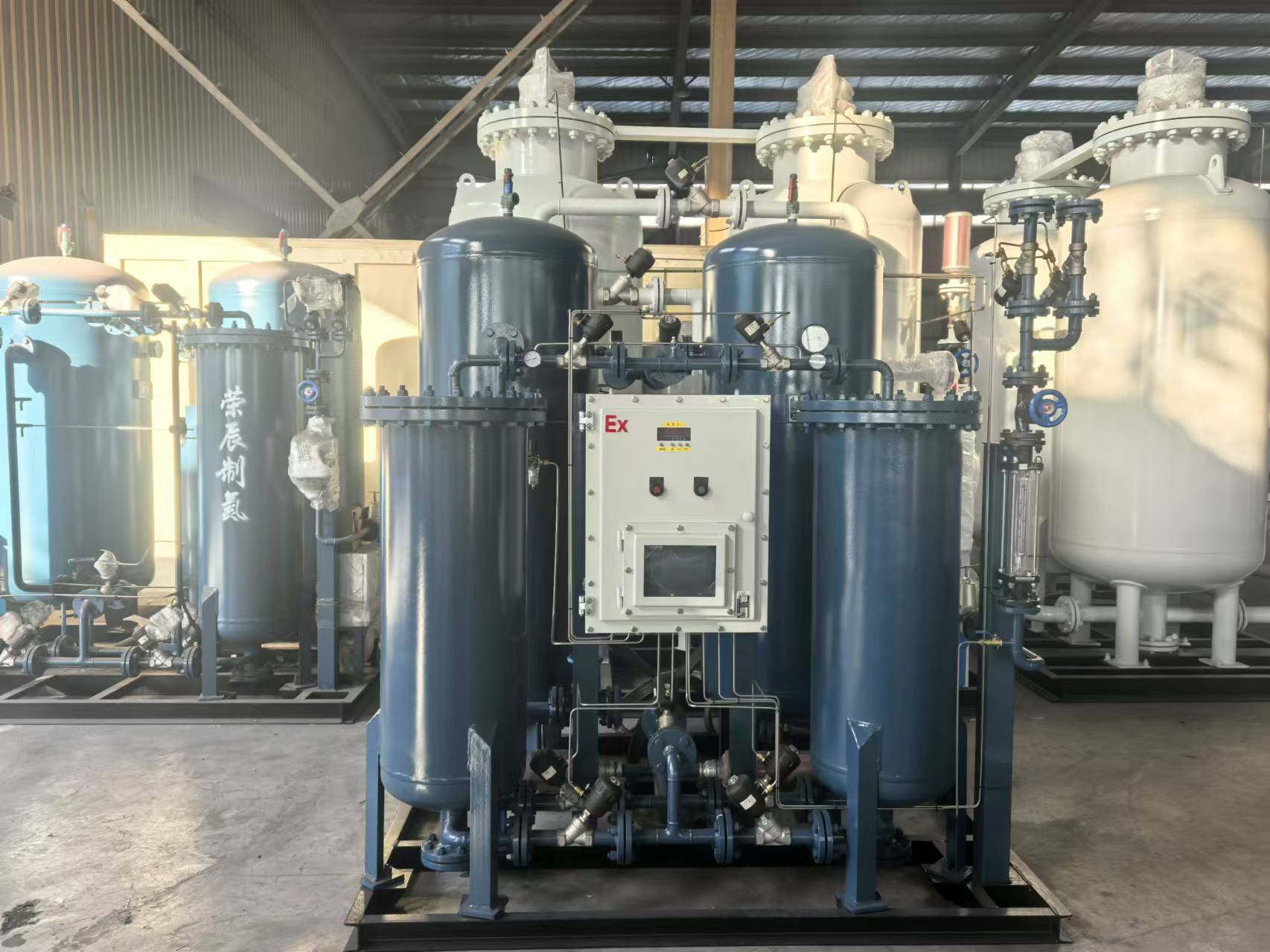

The tower type PSA nitrogen generator features a modular, twin-tower configuration designed to ensure uninterrupted nitrogen delivery by alternating adsorption cycles. Its carbon molecular sieve beds are optimized for durability and efficient nitrogen separation. The integration of automated pneumatic valve switching and molecular sieve compaction extends maintenance intervals while ensuring system stability. Additionally, the design includes components for compressed air purification and nitrogen buffering, forming a complete on-site nitrogen generation package. This comprehensive assembly exemplifies why our company is recognized among leading psa nitrogen generator manufacturers, providing scalable solutions adaptable to diverse industrial infrastructures.

Operational Performance and User-Centric Control

Performance efficiency is achieved through precise control over nitrogen purity, flow rates, and pressure levels, configurable via an intuitive human-machine interface. The automatic drainage of refrigeration dryers and filtration trains enhances system availability and reduces manual maintenance. Real-time alarms for any off-spec nitrogen conditions facilitate proactive management, ensuring compliance and process integrity. User value is further enhanced by optional plant system integration capabilities with communication protocols such as Modbus and Industrial Ethernet. Collectively, these features position this nitrogen generator supplier as a provider of user-friendly, reliable gas generation solutions tailored to industrial operational demands.

Use Scenarios

Role in Food Packaging Atmospheric Control

In the food packaging industry, maintaining extended product shelf life mandates controlled atmospheres rich in nitrogen to inhibit oxidation and microbial growth. The tower type PSA nitrogen generator functions as an on-site nitrogen supply, delivering high-purity nitrogen that replaces ambient air within packaging lines. Its capability to consistently produce nitrogen at specified purity and pressure levels aligns with stringent quality control requirements. Integration with packaging line control systems ensures synchronization of nitrogen generation with operational cycles, thereby reducing logistics complexity and supply chain risks associated with delivered gas cylinders. This application exemplifies the solution’s value in enhancing packaging integrity and operational efficiency.

Deployment in Electronics Manufacturing Processes

Electronics manufacturing facilities require protective nitrogen atmospheres during processes such as soldering, drying, and wafer fabrication to prevent oxidation and ensure product reliability. The psa nitrogen generator designed in a tower type PSA configuration provides continuous, stable nitrogen streams tailored to specific purity and flow demands inherent to these sensitive operations. Its automated control and online monitoring capabilities facilitate adherence to tight process specifications, reducing downtime and improving yield consistency. Moreover, compatibility with plant-wide communication protocols integrates nitrogen delivery into the central manufacturing execution system, supporting comprehensive process control and traceability.
